🔐 Access Control

PROMPT 2 uses role-based access control (RBAC) to manage user permissions throughout the system. This is implemented through Keycloak, which issues JSON Web Tokens (JWTs) and manages both system-wide and course-specific roles.

The platform distinguishes four main user types:

  • Administrator
  • Lecturer
  • Teaching Personnel
  • Student

Based on these, the system defines five roles, each with specific permissions:

🎓 Access Roles​

RoleScopeDescription
Prompt AdministratorSystem-wideFull access to all courses, users, and settings. Handles configuration and maintenance.
Prompt LecturerSystem-wideCan create new courses and view student history across all past courses.
Course LecturerCourse-specificAssigned when creating a course. Can configure course structure, manage phases, assess students, and assign final grades.
Course EditorCourse-specificSupports course execution. Can view participants and progress but cannot write data or assess students. May gain additional permissions per phase (e.g., give feedback).
Course StudentCourse-specificCan apply to courses, participate in phases, and view their progress and grades.

🧩 Role Resolution and Enforcement​

The PROMPT 2 system distinguishes system-wide roles from course-specific roles.

🔐 System-Wide Roles: Prompt Administrator and Prompt Lecturer​

These roles are managed directly in Keycloak and are encoded in each user's JWT token. Any component (core or course phase service) can validate these roles by inspecting the token.

📘 Course-Specific Roles: Course Lecturer and Course Editor​

These roles are dynamically created and linked to specific courses. The role names are generated with a naming convention that includes the semester and course name (e.g., ios25-iPraktikum-Lecturer). Because services typically operate using internal identifiers like courseID or coursePhaseID, they must map these IDs to role names.

To support this, the Core Server provides an endpoint that returns the correct role name for a given course or phase ID. Services can then:

  1. Request the role name using the ID
  2. Check whether the user’s JWT contains the required role
  3. Cache the result, since mappings rarely change

🧪 Example: Course Lecturer Access Flow​

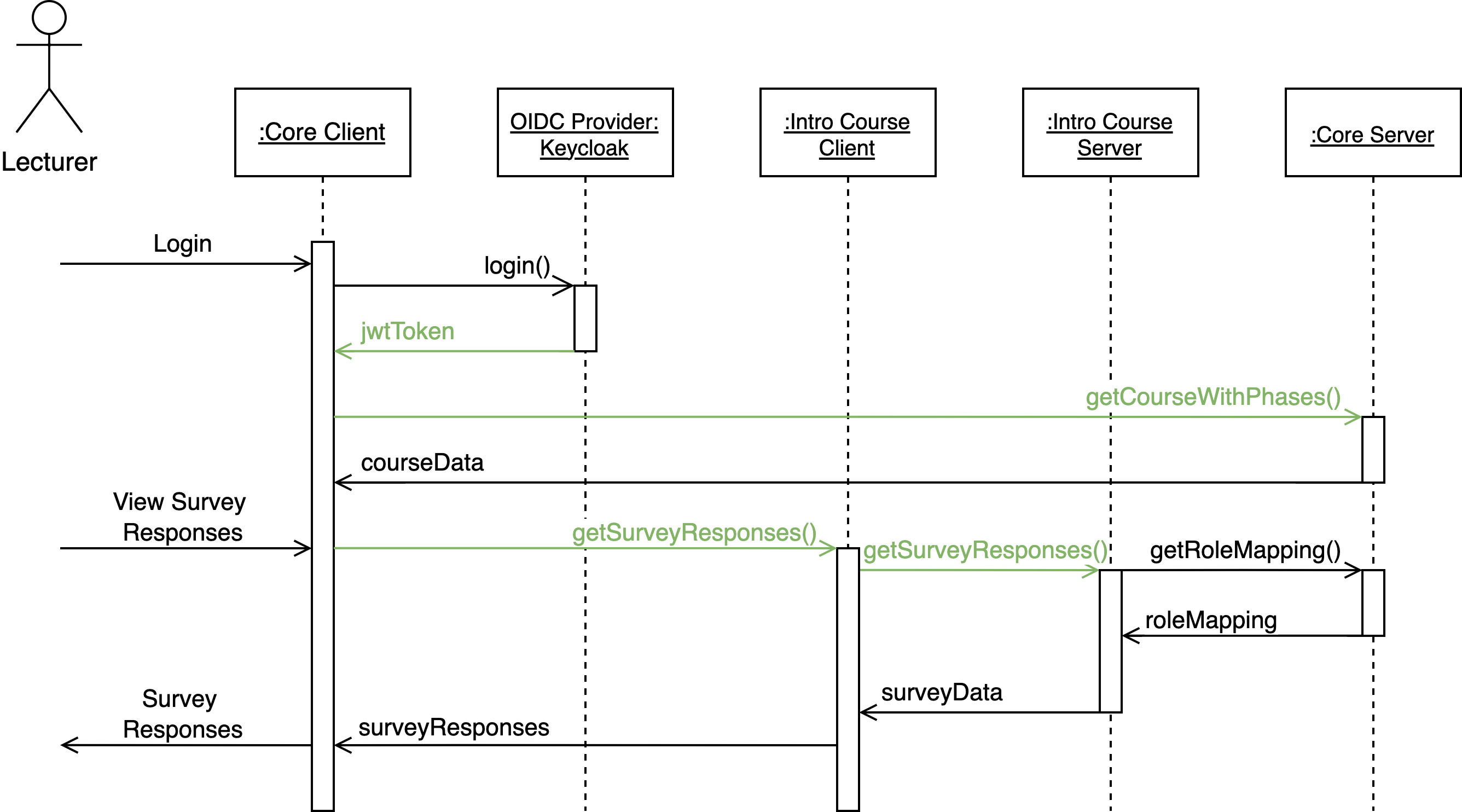

PROMPT 2 Access Control Flow for Course Lecturers

In this flow:

  • A lecturer logs in through the Core Client, which authenticates via Keycloak.
  • Keycloak issues a JWT token, which the client uses to retrieve associated courses from the Core Server.
  • When the lecturer accesses a course phase (e.g., the Intro Course), the microfrontend sends a request to the respective course phase service.
  • This request includes the jwtToken and coursePhaseID.
  • The course phase service contacts the Core Server to resolve the coursePhaseID into a role name.
  • It checks the JWT for the corresponding role before allowing access.

Note: This role mapping is public and not user-specific. Therefore, it does not require authentication and can be cached safely.

👩‍🎓 Student Role and Phase Participation​

The Course Student role is handled differently. Because student access is phase-dependent and students progress from phase to phase dynamically, their membership cannot be captured in static Keycloak roles.

Instead, the Core Server maintains authoritative information about which students are allowed in which phases. Course phase services must verify student membership using the dedicated Core endpoint.

🧪 Example: Course Student Access Flow​

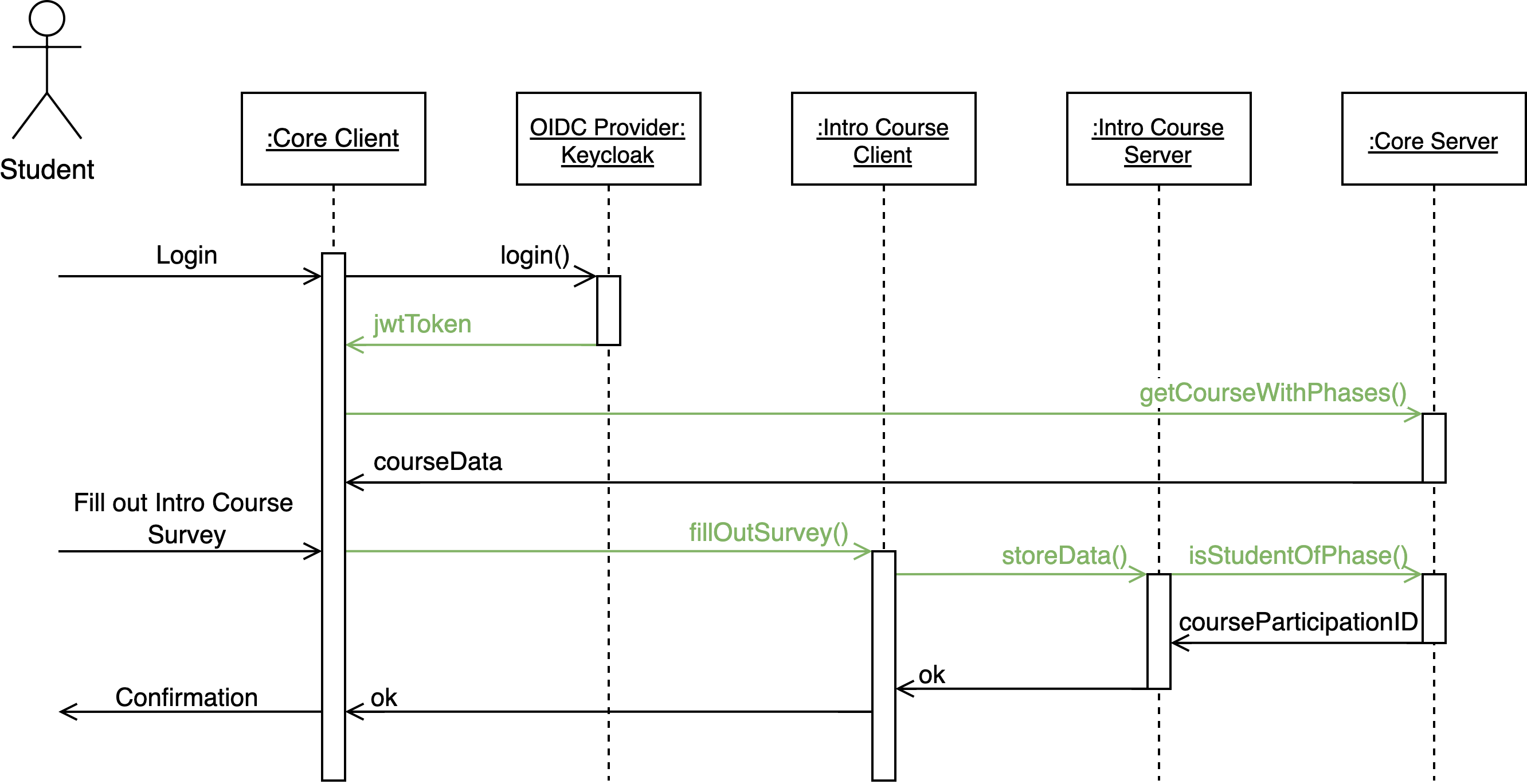

PROMPT 2 Access Control Flow for Course Students

In this flow:

  • A student logs in and receives a JWT token from Keycloak.

  • The Core Client only shows courses and phases the student is currently enrolled in.

  • When accessing a course phase (e.g., a survey in the Intro Course), the phase service:

    1. Sends the jwtToken and coursePhaseID to the Core Server
    2. Core verifies that the student is part of the phase
    3. Returns the courseParticipationID
    4. The phase service uses this ID to record progress (e.g., survey response)

Because phase participation may change (e.g., after passing a phase), the membership check result should not be cached long-term.

🎯 Custom Roles for Fine-Grained Access​

PROMPT 2 also supports the creation of custom Keycloak roles for advanced access scenarios. Instructors can define roles for specific course phases and assign them to users as needed.

These custom roles:

  • Do not inherit permissions from system-defined roles
  • Can be used by phase services to define access levels such as team membership or feedback permissions

Example: A course phase service may define team roles (team-1, team-2) and use them to differentiate student permissions within a team-based project.

✅ Summary​

Role TypeDefined InScopeValidated Using
Prompt AdministratorKeycloakSystem-wideJWT inspection
Prompt LecturerKeycloakSystem-wideJWT inspection
Course LecturerPROMPT CorePer CourseMapped role + JWT
Course EditorPROMPT CorePer CourseMapped role + JWT
Course StudentPROMPT CorePer PhaseMembership endpoint
Custom RoleKeycloakCustom LogicService-defined usage

🧑‍🤝‍🧑 Course Staff Management API​

Lecturers and Editors are managed via Keycloak groups (/Prompt/{semesterTag}-{courseName}/Lecturer and .../Editor). The PROMPT Core server exposes a small REST API on top of those groups so the UI does not have to talk to Keycloak directly. All routes live in servers/core/keycloakRealmManager/.

Endpoints​

The Authorization column uses the literal Keycloak role names the JWT must carry. <course> is the dynamic per-course suffix <semester>-<courseName>-<role> described above.

MethodPathAuthorization
GET/api/keycloak/:courseID/group/staffPROMPT_Admin or <course>-Lecturer
PUT/api/keycloak/:courseID/group/:groupName/members/:userIDPROMPT_Admin or <course>-Lecturer
DELETE/api/keycloak/:courseID/group/:groupName/members/:userIDPROMPT_Admin or <course>-Lecturer
GET/api/keycloak/users/search?q=...&limit=...PROMPT_Admin or any *-Lecturer (any course)
GET/api/keycloak/statusPROMPT_Admin only

Security Model​

The defence against cross-course privilege escalation rests on three independent invariants:

  1. The Keycloak group path is derived server-side from the :courseID in the URL. The client never sends a group name, path, or ID. GetCourseSubgroup (in realmManagement.go) is the only function that resolves the path - it concatenates courseGroupName (built from the DB row) with the sanitised role suffix.
  2. :groupName is validated against a hard-coded allow-list {"Lecturer", "Editor"} before any Keycloak call. Anything else returns 400 immediately. The allow-list values are permissionValidation.CourseLecturer / CourseEditor, which are also passed to GetGroupByPath as expectedName so a Keycloak misdirect would still be rejected.
  3. Self-removal is rejected at the server with 400. The caller's Keycloak sub (read from keycloakTokenVerifier.CtxUserID) is compared against the :userID path parameter. This single rule prevents an empty Lecturer group via this UI - the final remover can never delete themselves - which makes a count check or advisory lock unnecessary.

Every mutating call also writes an INFO-level audit log line in the form:

course-staff audit: caller=<sub> action=<add|remove> target=<userID> group=<groupName> course=<courseID>

Path Normalisation Gotcha​

gocloak.GetGroupByPath joins URL segments with /, so a leading-slash groupPath produces group-by-path//Prompt/... which recent Keycloak versions reject under strict path normalisation (missingNormalization: Request path not normalized). PROMPT's GetGroupByPath wrapper strips the leading slash before delegating. Keycloak itself strips a leading slash internally (see KeycloakModelUtils.findGroupByPath), so behaviour is unchanged at the business-logic layer.

If you add new code that calls client.GetGroupByPath directly, do not prefix the path with /. Prefer routing through the GetGroupByPath wrapper or GetCourseSubgroup, both of which handle this for you.

Service-Account Requirements​

The Core server uses its prompt-server Keycloak client's service account for these calls. The required realm-management role mappings are documented in the admin guide. The GET /api/keycloak/status endpoint probes each of them and powers the Keycloak card on the admin System Status page.
